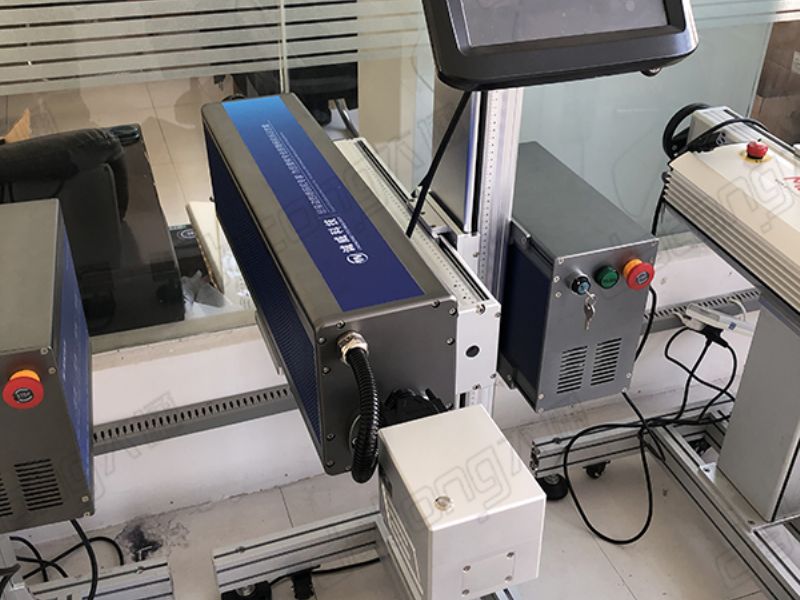

A new generation of 60 series carbon dioxide laser inkjet machine
•Compact integrated solutions
•New modular design, fast installation
•New aluminum alloy custom light path, compact and reasonable structure
•Easy to install and transfer solution
•Setting can be in 30 minutes. Production line change can be in 20 minutes

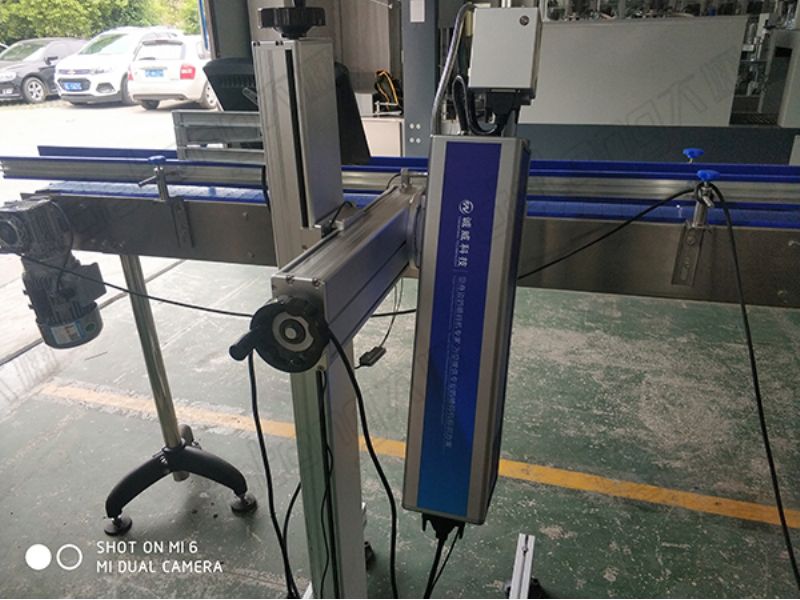

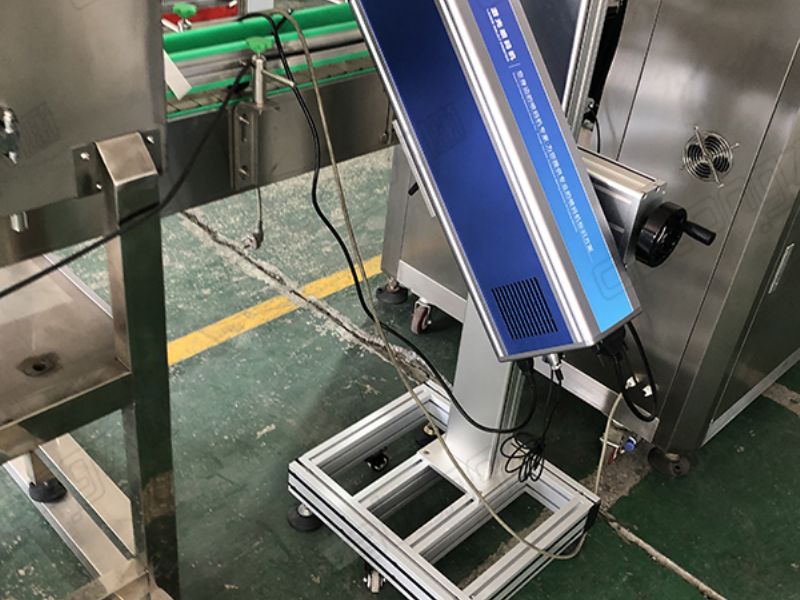

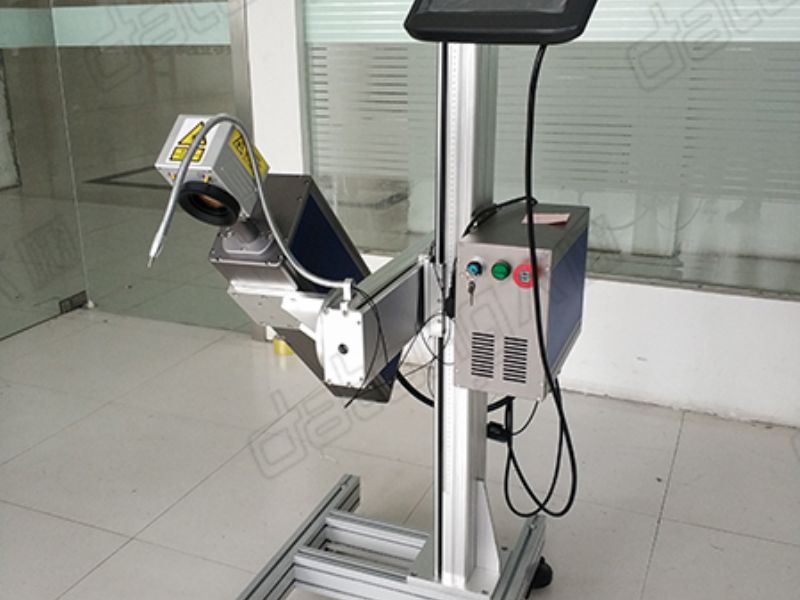

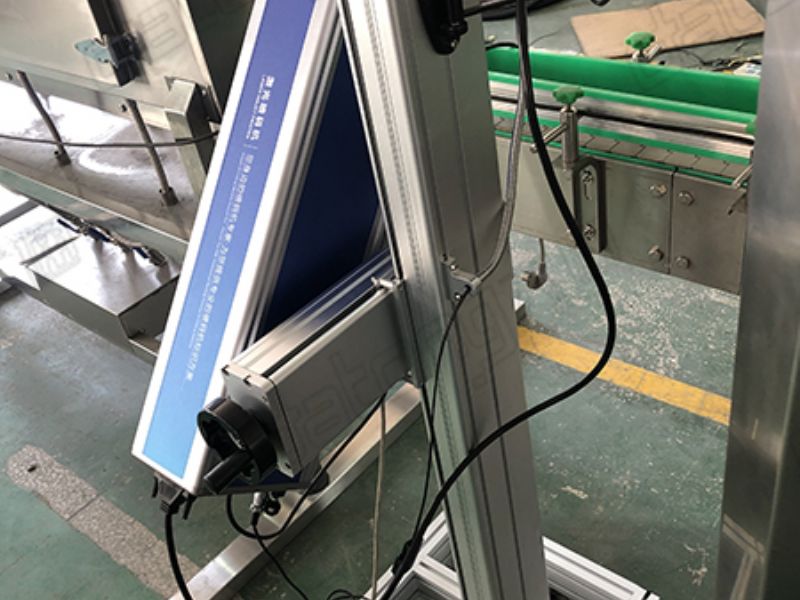

•The movable bracket is convenient for flexible installation

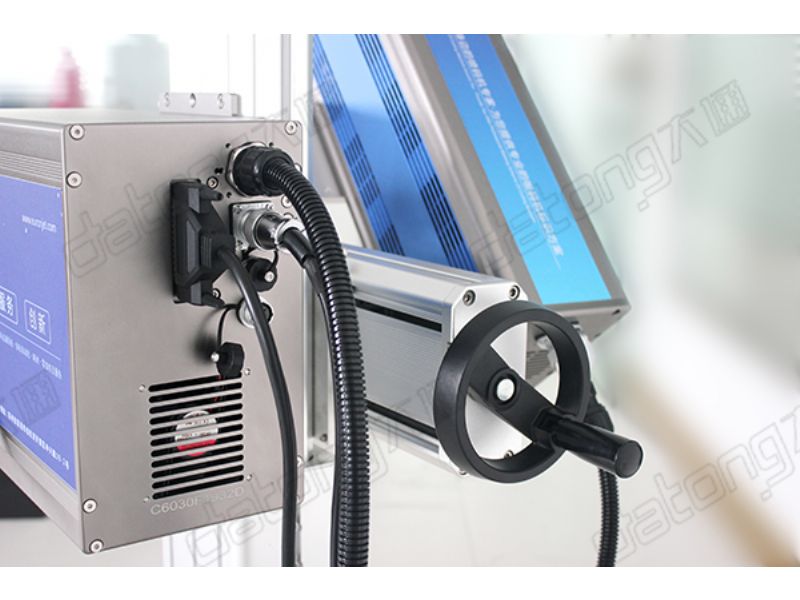

•Auxiliary focusing system, easy to find the focus, make the logo more clear
•Quick start and easy operation
•Touch screen control is easier to operate for the best ease of use
•Application Settings and task creation takes only 2 minutes
•Simple pipelining can be made from the select box menu and preview window
•Automatic detection of ready-to-use encoders and product detectors
•Unique 9.3 wavelength laser, more conducive to high-speed production of the beverage production line
•9.3 wavelength /10.6 wavelength laser, which can meet different materials coding of PET bottle and glass bottle

	Aided Focus Finding System

9.3-micron application scenario
Typical coding needs:
PET packaging manufacturers are increasingly turning to “thin-walled “PET in an attempt to reduce costs and waste. This makes it difficult for laser markers because thinner materials can burn through. This problem can be solved by selecting an appropriate wavelength to produce an alternative labeling effect. Another requirement for PET labeling is the ability to print at high speed, as most of these applications use high-speed alphanumeric expiration dates and lot information on beverages

Logo effect:
Foaming – Best labeling effect for “thin-walled” PET
Engraving – suitable for thicker PET materials

Mark speed:
typical speed 10,000-30,000 bottles/h

10.6-micron application scenario
Typical coding needs?
Laser marking systems typically print serial numbers, internal tracking numbers, and traceability information on glass (white or stained glass). QR codes are less common but can be implemented by using the appropriate dot size. It is recommended that the glass be marked with a small dot size to achieve a smooth marking effect. Using larger spot sizes can cause large microcracks and is rough to the touch

Logo effect:
Etch microcracks/cracks on the glass surface

Mark speed:
It usually has a maximum speed of 80m/min or 60000 bottles/hour

Typical coding requirements:
The Laser Coding Machine is suitable for printing on two main types of metal materials: coated metal and anodized aluminum. Typical applications typically require the printing of trademarks or alphanumeric characters, such as batch numbers. High-quality DataMatrix codes can also be printed for identification on anodized aluminum. For coated metal, if the coating is too thick, it may cause inconvenience to a laser printer. To achieve the desired marking effect, it may be necessary to increase the power of the laser printer or reduce the speed of the packaging line

logo effect:
Change color-anodized aluminum to remove color-coated metal surface

Mark speed:
Typical trademark (anodized)1-2 SEC. Typical Datamatrix code 0.5 SEC

Technical Data
It is mainly composed of a laser generator, deflection galvanometer, photoelectric sensor, main controller, and power supply.
The Chengwei C60XX series laser marking machine is the latest application of a dynamic laser marking control system. The system is equipped with software and hardware functions to control the motion precision parameters, synchronously track the fast-moving workpiece and control the laser output, and mark when the production line moves rapidly and the workpiece nonstop. Markers are both dot and vector. It can run continuously 2for 4 hours at the working site.

Technical Specifications:
