24-24-8 Glass Bottle Juice Filling Machine Of Factory Price

DT Ref: RCGF16

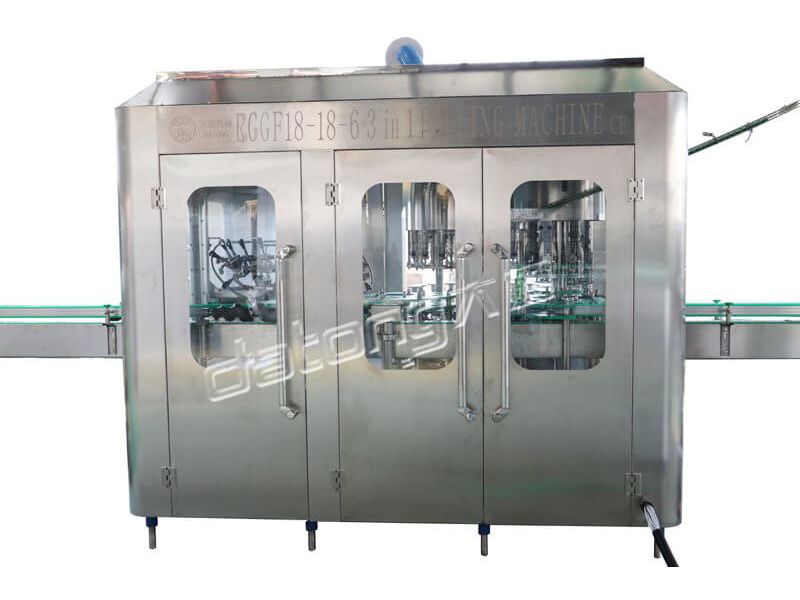

Our high-quality juice filling machine/line, certified for excellence, features the standard RCGF series hot filling machine in a “3-in-1” configuration. For specialized production needs, it can incorporate an extra disinfectant rinser to form a 3-in-1 monobloc. This system is meticulously designed to address the unique characteristics of beverages, such as the foaming tendencies of tea and mixed juices, while meeting the essential technical requirements for hot filling.

Order Information:

Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide

Description
Reviews (0)

Description

Additional Information

24-24-8 glass bottle juice filling machine of factory price

Glass bottle fruit juice beverage production whole course video

<xxxwidth=”677″></xxxwidth=”677″>

Model	RCGF14-12-5	RCGF16-16-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12	RCGF50-50-15		RCGF60-60-15
Production capacity(b/h)	2500	4000	6000	8000	13000	18000	22000		26000
Suitable bottle shape	circular or square
Bottle diameter(mm)	ф50-?95
Bottle height(mm)	150-310
Washing medium	aseptic water
Total power(kw)	3	3.5	4	5.5	7.5	11	15	20
Weight(kg)	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	720036502600

The above technical parameters are subject to continual update,please take the real product as the base. machines can be customized for special products.

Plate UHT Sterilizer

This machine is of the advantages of high heat recycle, compact and fine structure, and temperature control. outputting material temperature, and cool package.

Tube UHT Sterilizer

The tube(pipe) sterilize machine can take hot process on the liquid foods and beverage.

Bottle Inverse Sterilizer Machine

It is mainly used in sterilizing PET bottle mouth and inside surface of caps. in which haven’t been disinfected by themal tea,fruit juice which having been filed in PET bottle.

Continuous Spraying Sterilizer

It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool; It is with the advantage of sterilizing temperature automatic control, and adjustable sterilizing time.
