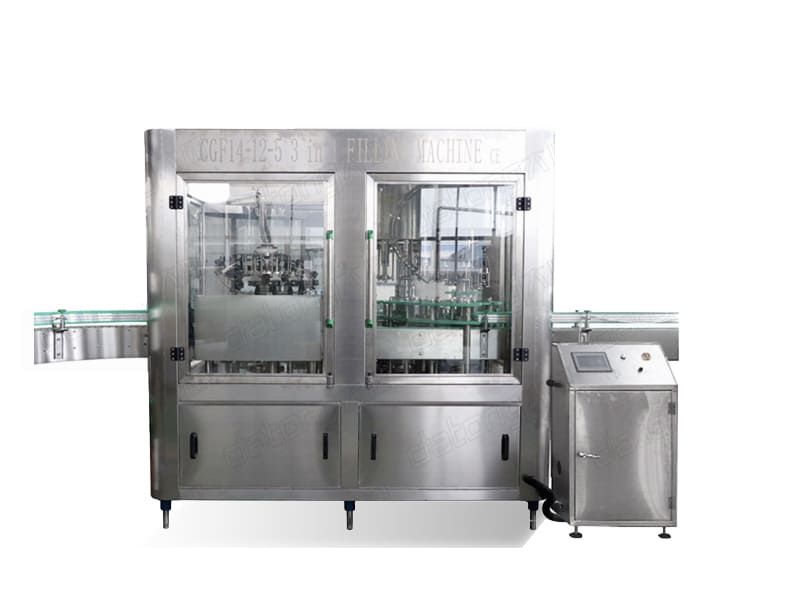

14-12-5 Glass Bottle Mineral Water Filling Machine

DT Ref: CGF13

High quality water filling machine / line with certificate . Standard type of CGF series filling machine is “3-in-1”. the height of the bottle-out conveyor is adjustable. bottles are conveyed to rinser,filler and capper through starwheel and conveyed out finally through bottle-out conveyor.equip alarm device for bottle block,bottle absence,cap absence and overload.the machine meets the national food hygienic standard,with high automation and easy to operate.

Order Information:

Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide

Description
Reviews (0)

Description

Additional Information

14-12-5 glass bottle mineral water filling machine

1. Adopt food grade SUS304 stainless steel material, compact structure, reasonable design, small footprint, production capacity from 2000-36000b/h all can be customized;
2. PLC control, touch screen human-computer interaction interface, easy to operate, easy to maintain; The whole line output can be adjusted and has good compatibility and expansibility.
3. Perfect to meet customer needs, has small investment, quick results! It is small and medium-sized bottled water manufacturers’ ideal production and processing equipment?

Glass bottle of Water filling the whole course video

By 3-in-1 monoblock, the bottle goes through washing, filling, and capping with little abrasion, and the transferring is stable, bottle changing is easier. The specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck, avoiding second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. parts contacting liquid are all made of excellent stainless steel or food-grade engineering plastic. the electric system is from an international brand and achieves the national food hygienic standard. the bottle-out starwheel is a helical structure. while changing over bottle size. There is no need to adjust the bottle-out conveyor height.

<xxxstyle=”width: 100%;”=””></xxxstyle=”width:>

Model	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15		CGF60-60-15
Production capacity(b/h)	2500	4000	6000	8000	13000	18000	22000		26000
Suitable bottle shape	circular or square
Bottle diameter(mm)	50-95
Bottle height(mm)	150-310
Washing medium	aseptic water
Total power(kw)	3	3.5	4	5.5	7.5	11	15	20
Weight(kg)	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	720036502600

The above technical parameters are subject to continual update, please take the real product as the base. machines can be customized for special products.

The overall structure integration

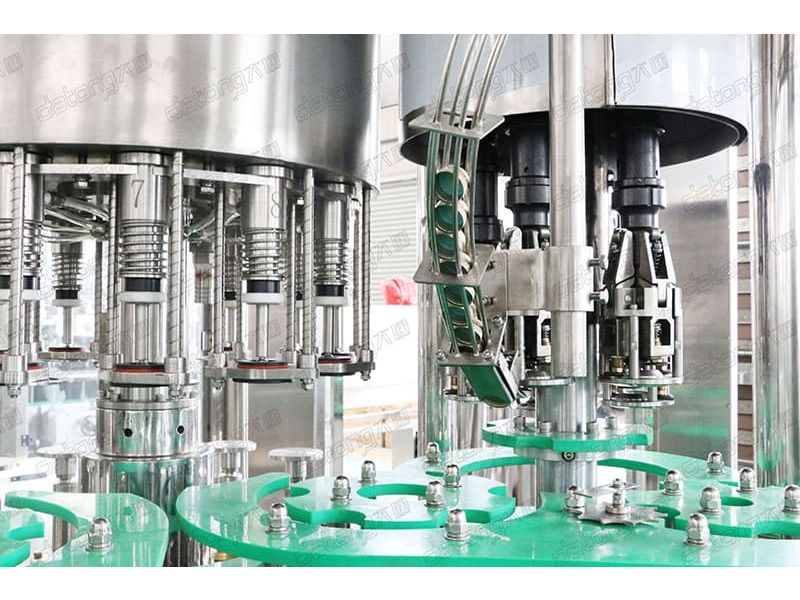

The 3-in-1 unit completed the three processes of washing the bottle, filling, and sealing.

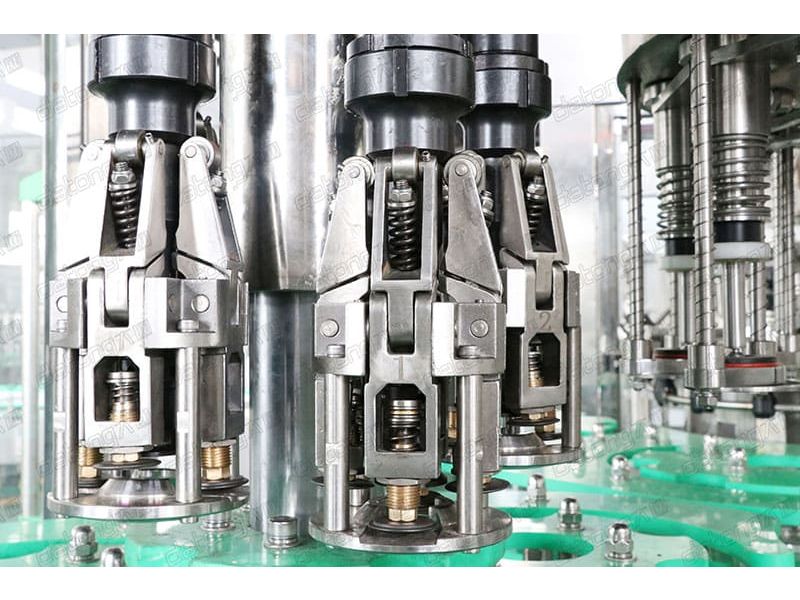

< Bottle washing clamp >

stain steel tube, bottle washing clamp isometric design.

A specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck, avoiding the second contamination.

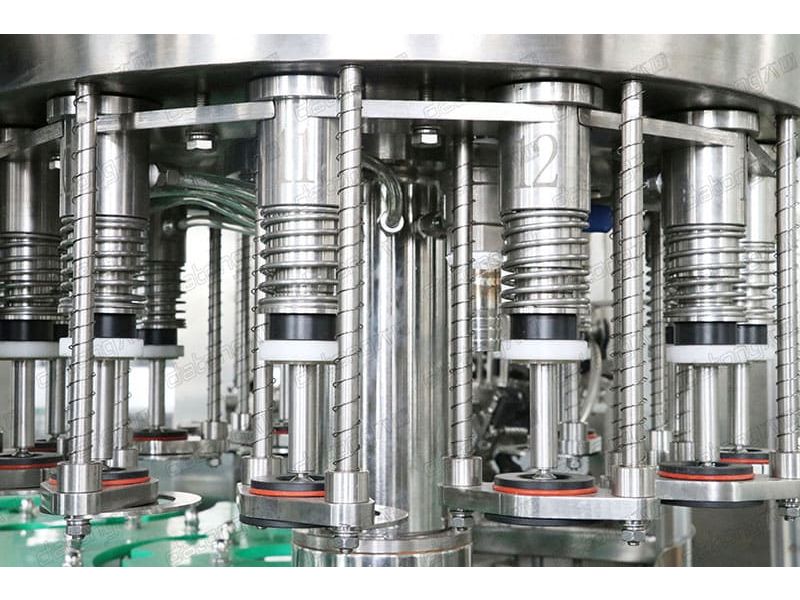

< Filling valve >
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food-grade engineering plastic. filling valves, machine scutcheon, etc. use laser printing.
